The KX-3300 is a wide band folded dipole designed to operate on all frequencies from 1.8 MHz to 30 MHz. On the amateur bands no ATU should be necessary to achieve an SWR of 3:1 or better.
The antenna can be installed horizontally, as an inverted V, or as a sloper with the lower end at close to ground level.
Features
Specifications
1. FREQUENCY RANGE : 1.8 MHz~30 MHz
2. MAXIMUM POWER : 150 WATTS PEP
3. OVERALL LENGTH: 25 METRES
4. VSWR :
2.0 : 1 (FROM 1.8 TO 4.9 MHz)
1.5 : 1 (FROM 5 TO 15.9 MHz)
3.0 : 1 (FROM 18 TO 30 MHz)
5. IMPEDANCE : 50 OHMS
6. CONNECTOR : SO-239

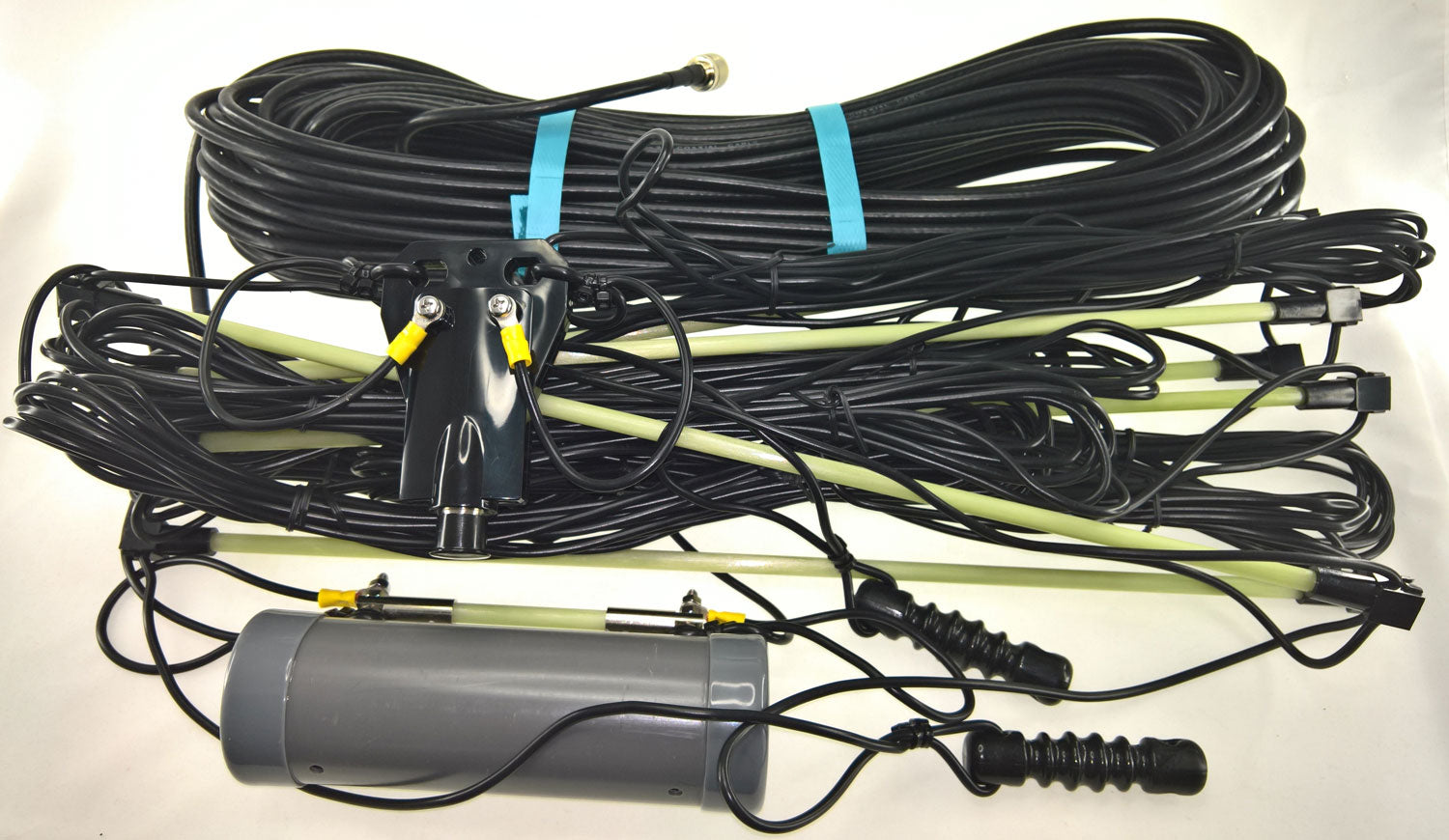

Contents
* 30 m of SD-2V high quality coaxial feeder cable with PL-259 connectors
* Feed point with S0-239 connector
* Insulated copper wire antenna with 6 pre-fitted spacers
