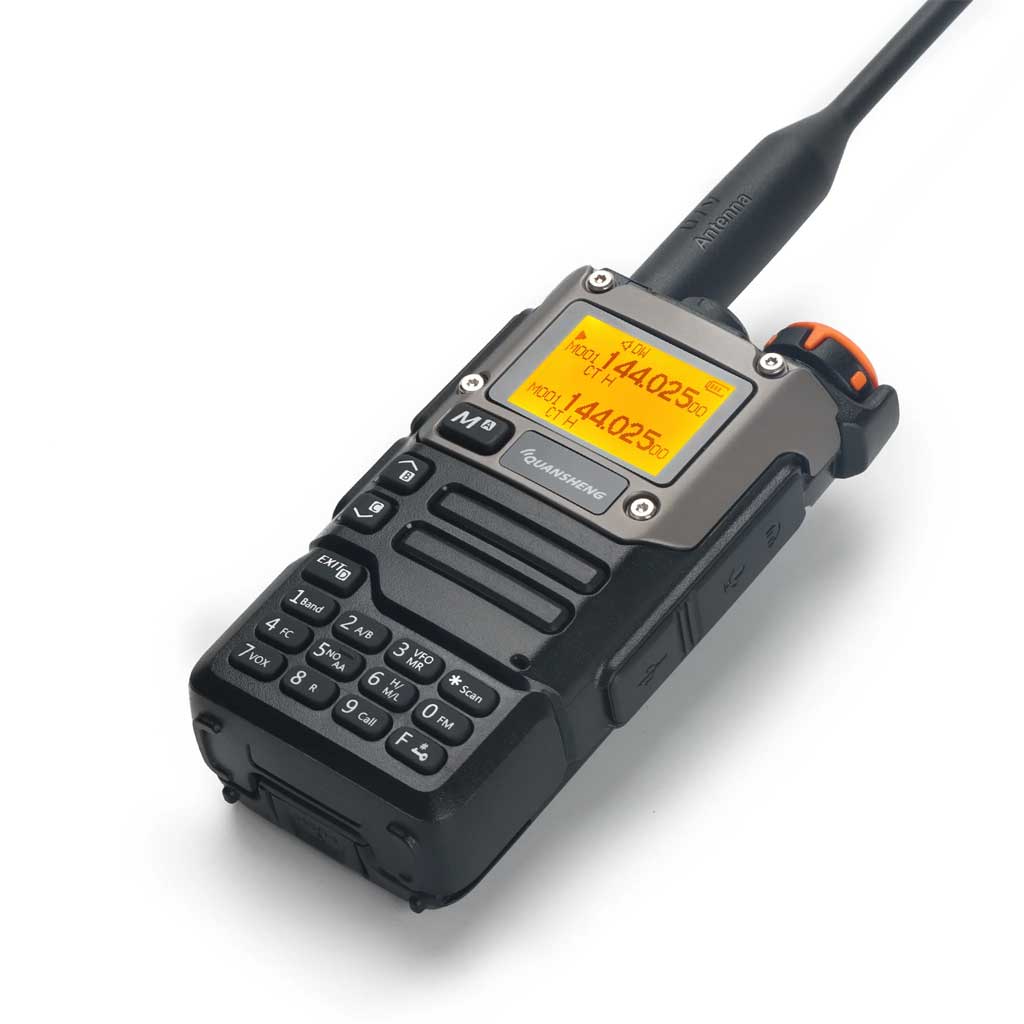

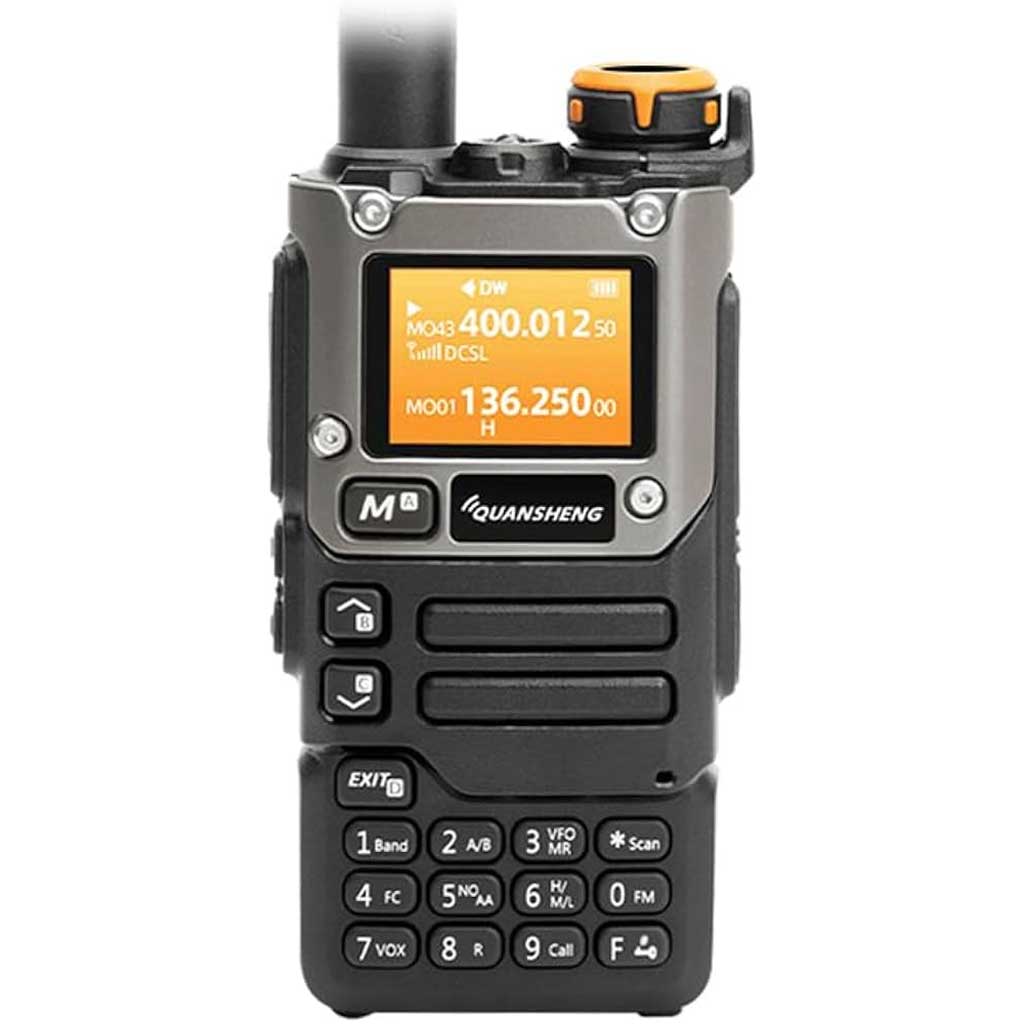

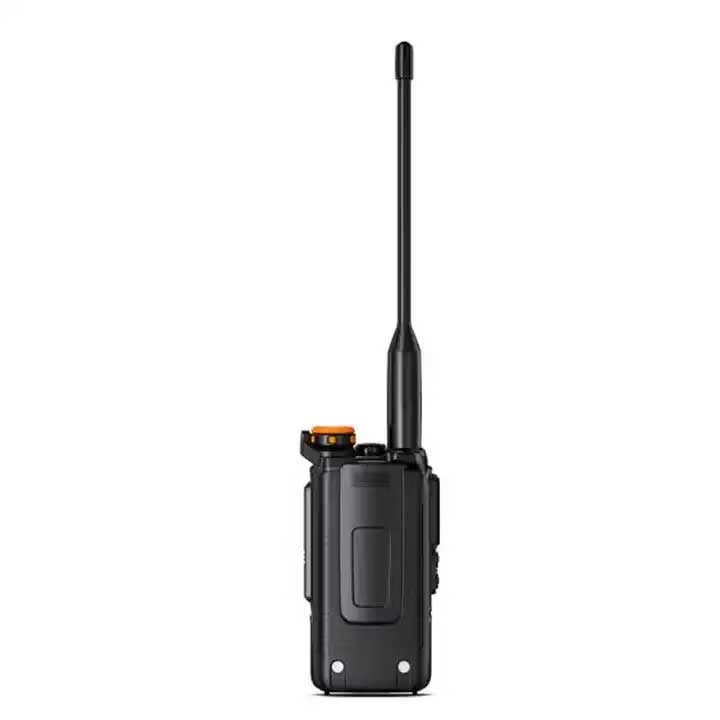

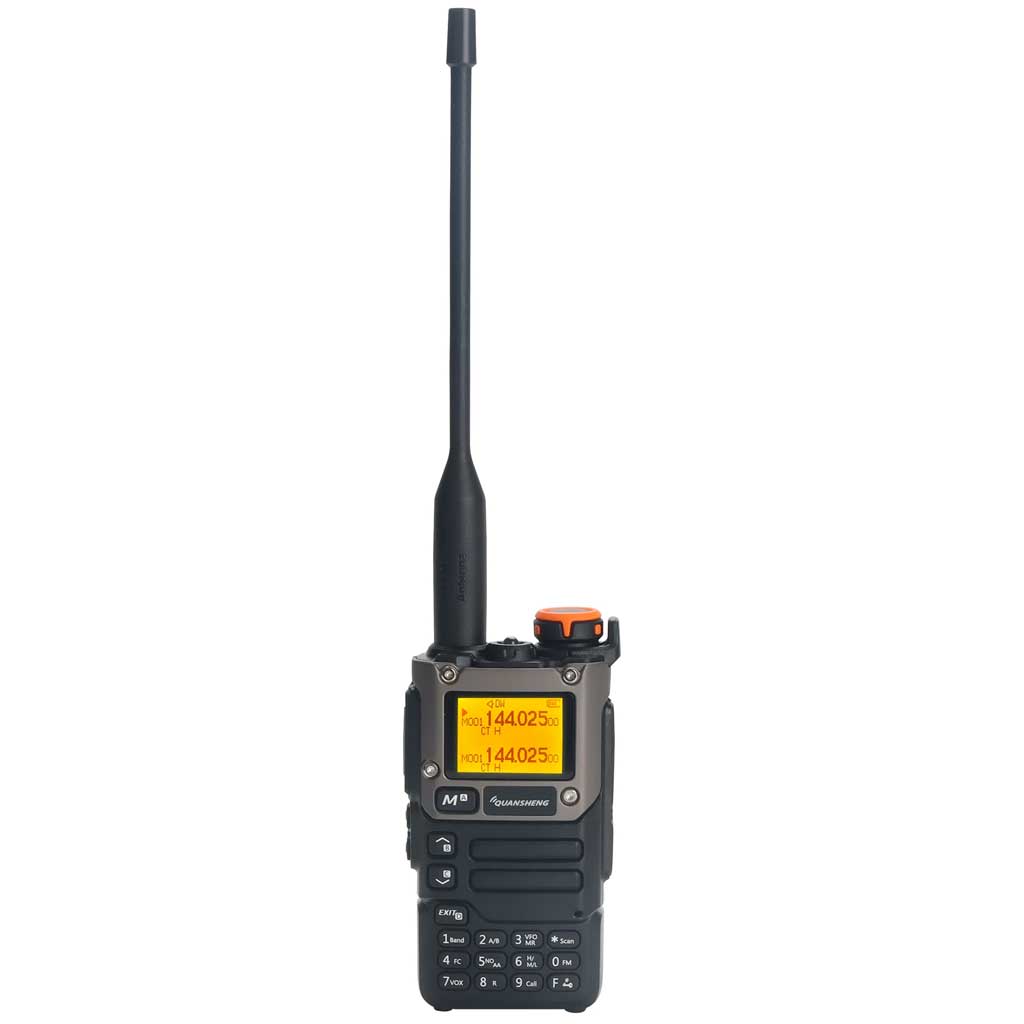

Quansheng UV-K5(8) UV-K58 2m/70cm Handheld Transceiver

Quansheng UV-K5(8) UV-K58 2m/70cm Handheld Transceiver

UV-K58

£19.99 GBP
£19.99 GBP
Sale Sold out
Taxes included.

***PLEASE NOTE THAT WE CAN ONLY SHIP HANDHELD RADIOS TO UK MAINLAND ADDRESSES DUE TO INTERNATIONAL POSTAL RESTRICTIONS ON THE CARRIAGE OF LITHIUM-ION BATTERIES BY AIR***

Quansheng is one of China's leading handheld transceiver manufacturers - their TG-UV2 dual bander was the first Chinese handheld of its kind to achieve CE certification back in 2008.

The UV-K5(8) has been making waves in the Amateur radio community worldwide, thanks to its upgradeable and modifiable firmware.

The UV-K5(8) is CE- and FCC-approved and ROHS compliant. Key features include a robust black & grey plastic housing, an excellent dual band antenna measuring approximately 175 mm in length, USB-C charging capability and a 7.2 V lithium-ion battery with a 1600 mAh rating.

PLEASE NOTE THAT THE UV-K5(8) IS SUPPLIED WITH A TWO-PIN EURO STYLE PLUG. A TWO-TO-THREE-PIN ADAPTER (SUCH AS A SHAVER ADAPTER) IS REQUIRED FOR USE IN THE UK.

Features

Frequency Range: 136-174 & 400-470 MHz
Dual-Band
Dual Frequency Display
Dual Watch Facility
High/Low Output Power (5/1 Watts)
Numeric Keypad for direct frequency input
Switchable Voice Prompt
200 Easily Programmable Memory Channels
50 CTCSS and 105 DCS Programmable Tones
VOX Function
1750 Hz Burst Tone for Repeater Activation
FM Radio Function (65.0 MHz-108.0 MHz)
Airband receive function
Removable 175 mm Dualband Antenna (SMA Female type)
Built In LED torch with emergency flash function
Large Two Line Alphanumeric LCD Display with yellow backlight
Low Battery Alert
Battery Saver Feature
Transmission Timeout Timer
Keypad Lock
Selectable Channel Steps: 2.5/5/6.25/10/12.5/25 kHz
DTMF Tone Generator
Windows PC programmable via optional USB Cable

Specifications

General
Frequency Coverage (RX/TX) VHF 136-174 MHz/UHF 400-470 MHz
Memory Channels 200
Antenna Connector SMA Male
Frequency Step (selectable) 2.5/5/6.25/10/12.5/25 kHz
Battery Voltage 7.2 V
Battery Capacity 1600 mAh
Frequency Stability (-20° to +50° C) +/- 1 ppm
Operating Temperature -20° to +60° C
Antenna Impedance 50 ohms
Dimensions (W x H x D) 60 x 115 x 37.5 mm
Weight (with battery & antenna) 234 g

Transmitter
RF Power Output (maximum) 5 Watts
Modulation Type F3E
Spurious Radiation <7.5μW
Adjacent Channel Selectivity (W/N) ≤-70 dB/≤-60 dB
Modulation Sensitivity 8 - 12 mV
Signal-to-Noise Ratio(W/N) ≥-45 dB/≥-40 dB

Receiver
Sensitivity (12 dB SINAD)
Spurious Response Rejection ≥65dB
Audio Output Power (8 ohms) 0.5 Watt
Audio Distortion <10%
Transmit Current ≤1.5 A
Intermodulation (W/N) ≥65dB/≥60dB
Adjacent channel selectivity (W/N) ≥70dB/≥60dB

All specifications subject to change without notice

Contents

1 x Quansheng UV-K5(8) Dualband Transceiver
1 x 1600 mAh Lithium-ion Battery
1 x 175 mm Dualband (2m/70cm) Antenna
1 x Belt Clip
1 x English Instruction Manual

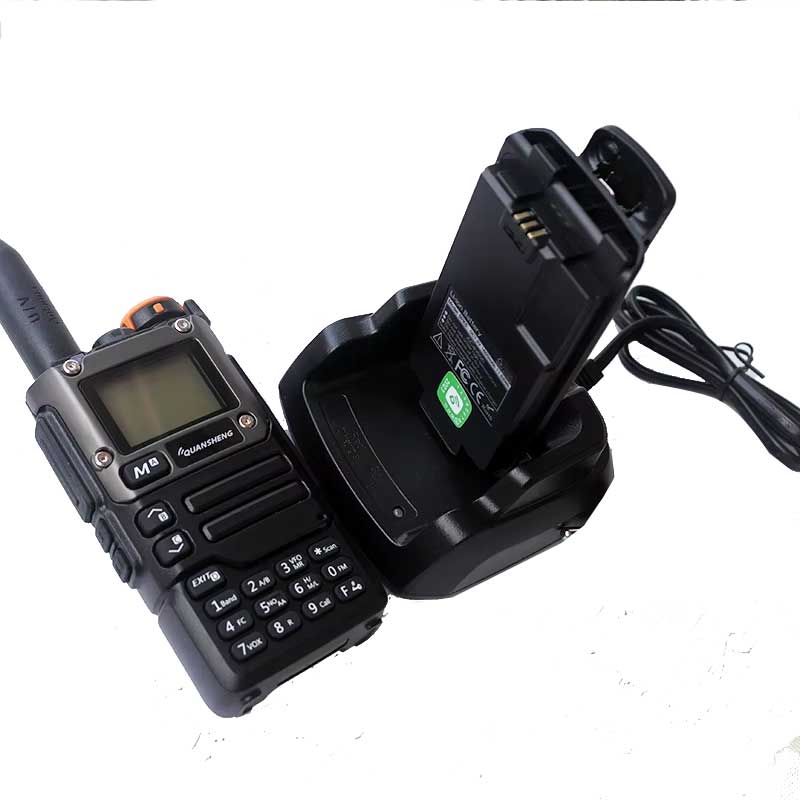

1 x Drop-in Charger with Euro type two-pin mains plug
